Important notice

This workflow is provided as-is. Please review and test before using in production.

1. Workflow Overview

This workflow integrates a chatbot frontend with a backend powered by Langflow , a visual low code AI development tool. The flow is triggered whenever a chat message is received via the n8n chatbot...

Best for

Support Chatbot automation workflows
AI Chatbot automation workflows
intermediate n8n builders looking for reusable templates

Tools used

@n8n/n8n-nodes-langchain.chattrigger, n8n-nodes-base.set, n8n-nodes-base.stickynote, n8n-nodes-base.httprequest

Source and attribution

This workflow is cataloged by N8N Workflows and links back to its original n8n.io source page by Davide.

Original n8n.io source

1.1 Workflow description

Title: Create AI-powered website chatbot with Langflow backend and custom branding
Workflow name: Create AI-powered website chatbot with Langflow backend and custom branding

This workflow integrates a chatbot frontend with a backend powered by Langflow, a visual low-code AI development tool. The flow is triggered whenever a chat message is received via the n8n chatbot widget embedded on a website. It then sends the message to a Langflow flow for processing and returns the generated response to the user.

How It Works

Chat Trigger: The workflow starts with a webhook trigger (When chat message received) that listens for incoming chat messages from the n8n Chat interface.
Langflow Integration: The chat input is sent to a Langflow instance via an HTTP request (Langflow node). The request includes the user's message and expects a response from the Langflow flow.
Response Processing: The output from Langflow is extracted and formatted using the Edit Fields node, ensuring the chatbot displays the response correctly.
Customization: Sticky notes provide instructions for embedding the n8n Chat widget on a website and customizing its appearance, including welcome messages, language settings, and branding.

Set Up Steps

Configure Langflow Connection:
- Replace LANGFLOW_URL and FLOW_ID in the HTTP request node with your Langflow instance details.
- Ensure the API headers (e.g., Content-Type: application/json) and authentication (if required) are correctly set.
Deploy n8n Chat:
- Add the provided CDN script to your website, replacing YOUR_PRODUCTION_WEBHOOK_URL with the webhook URL generated by the When chat message received node.
- Customize the chatbot’s UI (e.g., title, placeholder text, initial messages) using the JavaScript snippet in the sticky notes.
Activate Workflow:
- Toggle the workflow to "Active" in n8n.
- Test the chatbot by sending a message and verifying the Langflow response is processed and displayed correctly.

Advantages

✅ Seamless Langflow Integration It allows n8n to communicate directly with a Langflow flow via API, enabling AI responses using custom-designed Langflow logic.

✅ No-Code Chatbot Deployment With just a script snippet, the chatbot widget can be embedded into any website. Minimal coding is required to launch a fully functioning AI chatbot.

✅ Customizable UI/UX The included embed code offers full control over the chatbot's appearance, language, welcome message, input placeholder, and branding—ideal for white-label or customer-facing deployments.

✅ Modular and Extensible Because it's built in n8n, this chatbot can be easily extended with other services like CRMs, email alerts, or databases, without leaving the platform.

✅ Real-Time AI Interactions Thanks to Langflow's API and chat response support, users get immediate and dynamic AI-driven replies.

Need help customizing?

Contact me for consulting and support or add me on Linkedin.

1.2 Logical Blocks

This catalog entry is organized from the workflow JSON. The node-level section below shows the executable blocks available for review before importing the template.

2. Block-by-Block Analysis

Block 1 - When chat message received

Type / Role: @n8n/n8n-nodes-langchain.chatTrigger - chatTrigger
Config choices: Version 1.1

Block 2 - Edit Fields

Type / Role: n8n-nodes-base.set - set
Config choices: Version 3.4

Block 3 - Sticky Note

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 4 - Sticky Note1

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 5 - Sticky Note2

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 6 - Langflow

Type / Role: n8n-nodes-base.httpRequest - httpRequest
Config choices: Version 4.2

Block 7 - Sticky Note3

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

3. Summary Table

Workflow	Create AI-powered website chatbot with Langflow backend and custom branding
Complexity	intermediate
Nodes	7
Categories	Support Chatbot, AI Chatbot
Author	Davide
Published	04 Jun 2025

4. Reproducing the Workflow from Scratch

1. Download the workflow JSON

Use the JSON export at /data/workflows/4645/4645.json as the source template for this automation.
2. Import the template into n8n

Open n8n, import the downloaded JSON, and review each node before activating the workflow.
3. Configure credentials and variables

Replace placeholder credentials, API keys, webhook URLs, account IDs, and environment-specific values with your own settings.
4. Test with sample data

Run the workflow manually or in a staging workspace, inspect node output, and confirm downstream systems receive the expected data.
5. Activate and monitor

Enable the workflow only after testing, then monitor executions, errors, and rate limits during the first production runs.

5. General Notes & Resources

Review imported nodes carefully before activation. This catalog entry is intended to help you inspect the workflow structure, understand required services, and find related templates faster.

Node names, credentials, schedules, webhook paths, and external service limits may need adjustment for your workspace.

Download workflow JSON Original n8n.io source Support Chatbot workflows AI Chatbot workflows

Frequently asked questions

What does Create AI-powered website chatbot with Langflow backend and custom branding do?

What do I need before importing this workflow?

Review the workflow JSON, configure any required credentials in n8n, and test the automation in a safe workspace before using it in production.

Can I customize this workflow?

Yes. Use the block-by-block analysis and the downloadable JSON to inspect each node, then adjust credentials, prompts, schedules, filters, or destinations for your Support Chatbot, AI Chatbot use case.

Davide

151 workflows

Nodes

@n8n/n8n-nodes-langchain.chattrigger n8n-nodes-base.set n8n-nodes-base.stickynote n8n-nodes-base.httprequest

Complexity

intermediate

Published 04 Jun 2025

Likes 0

View on n8n.io Download Workflow

Install path: /data/workflows/4645/4645.json

Share Your Workflow

Have a useful automation to share? Publish it and help the community.

Submit Your Template How to Submit

Related Workflows

Route RAG customer support across WhatsApp and Outlook with Pinecone and OpenRouter

## Quick overview A production-ready 3-workflow system that handles customer support across WhatsApp and Email using RAG-powered AI. Automatically routes queries, detects escalation intent, logs handoffs to Google Sheets, alerts your team via Slack, and lets agents resolve cases with a single slash command. ## How it works 1. A form trigger accepts PDF, DOCX, and TXT documents, chunks them with a token splitter, embeds them using Google Gemini, and stores them in your Pinecone vector store to build the AI knowledge base. 2. Incoming messages from WhatsApp Business Cloud API and Microsoft Outlook are each normalized into a unified contact format — capturing channel, contact ID, name, and message text — before merging into a single pipeline. 3. Every message is checked against a Google Sheets handoff tracker. If the contact is currently assigned to a human agent, the message is forwarded directly to Slack without any AI involvement. 4. For active (non-handoff) contacts, the AI Support Agent queries Pinecone via RAG, pulls context from a sliding conversation memory window, and returns a structured JSON output containing a reply and a handoff_requested flag. 5. If the AI detects escalation intent or has no answer, it sets handoff_requested: true — the contact is logged to Google Sheets, AI goes silent for that contact, and a detailed alert is posted to your Slack support channel. 6. Answers are routed back through the originating channel — WhatsApp replies via Business Cloud API, email replies via Microsoft Outlook — keeping every conversation native to its platform. 7. Support agents run /resolve [contact_id] in Slack to close a handoff. The workflow validates the input, updates the Google Sheets row with agent name and timestamp, re-enables AI for that contact, and confirms resolution in the Slack channel. ## Setup 1. Pinecone + Embeddings: Create a Pinecone index and add your Pinecone credential to the "Insert into Vector Store" and "Knowledge Base" nodes. Set your Google Gemini API credential on both Embeddings nodes (one in Workflow 1, one in Workflow 2). 2. WhatsApp: Connect your WhatsApp Business Cloud API credential to the WhatsApp Trigger node. Replace YOUR_WHATSAPP_PHONE_NUMBER_ID in both Send WhatsApp Message nodes. 3. Email: Add your Microsoft Outlook OAuth2 credential to the Outlook Trigger and the Send Email Answer node. 4. Handoff Sheet: Create a Google Sheet with a tab named Handoffs and these column headers exactly: contact_id | channel | contact_name | status | handoff_since | resolved_by | resolved_at. Set your Google Sheets credential and paste your Sheet ID into all four Google Sheets nodes across Workflows 2 and 3. 5. Slack: Create a Slack bot app, add it to your support channel, and set the credential in all three Slack nodes. Update the channel name if yours differs from #support-handoff. 6. AI Model: Add your OpenRouter (or OpenAI) API key to the Chat Model node. Swap the model slug in node settings as needed. 7. Slash Command: Activate Workflow 3 first to generate its production webhook URL. Then in your Slack app settings go to Slash Commands → Create New → set command to /resolve → paste the webhook URL → reinstall app to workspace. 8. Activate order: Workflow 1 (KB ingestion) → Workflow 3 (resolve handler) → Workflow 2 (main support flow). ## Requirements - n8n (self-hosted or cloud) - WhatsApp Business Cloud API account (Meta Developer App) - Microsoft 365 / Outlook account - Pinecone account - Google Gemini API key - OpenRouter or OpenAI API key or Any other LLM - Google Sheets - Slack workspace with a custom bot app ## Customization - Edit the system prompt in the AI Support Agent node to match your brand voice, support scope, and escalation rules - Swap Google Gemini Embeddings for OpenAI Embeddings — just replace the Embeddings node and ensure your Pinecone index dimensions match - dd more channels (Telegram, Instagram DM, etc.) by normalizing their payloads into the same contact format and feeding them into the Merge node - Adjust conversation memory window (default: 8 messages) in the Conversation Memory node - Trigger the resolve webhook from your CRM or helpdesk instead of Slack if preferred ## Additional info All three workflows must be active simultaneously for the system to function Handoff state is persisted in Google Sheets and survives n8n restarts or server reboots Once a contact enters handoff, the AI is completely silent for that contact — no accidental double-responses Document metadata (filename, uploader name, timestamp) is stored alongside vectors in Pinecone for full traceability Default chunk settings: 500 tokens / 100 overlap — tune in the Token Splitter node based on your document style Contact / Support 🔗 n8n Templates: n8n.io/creators/salmanmehboob 💼 LinkedIn: linkedin.com/in/salman-mehboob-pro 📧 Email: [email protected] 💬 WhatsApp: +92 306 746 6499

View

Answer hotel guest messages with GPT-4o mini, Slack, and Google Sheets

## Quick Overview This workflow receives guest messages via a webhook, uses OpenAI (GPT-4o-mini) to generate multilingual hotel support replies with an escalation flag, notifies the front desk in Slack when needed, logs the interaction to Google Sheets, and returns a JSON acknowledgement to the messaging gateway. ## How it works 1. Receives an inbound guest message through a webhook from a WhatsApp/Viber gateway. 2. Normalizes the incoming payload into a consistent structure (guest ID, channel, guest name, and message text). 3. Uses OpenAI (GPT-4o-mini) to generate a short reply in the guest’s language based on the built-in hotel information and outputs structured JSON with language, reply, category, and an escalate flag. 4. If the message needs human attention, posts the guest details and message to a Slack front-desk channel. 5. Routes the reply based on the reported channel and sends the generated reply text to Slack. 6. Appends the conversation data to Google Sheets and responds to the gateway with a JSON status including the detected language and whether it was escalated. ## Setup 1. Configure the inbound webhook URL in your WhatsApp/Viber gateway so it sends a payload containing at least channel, from, and text/message fields. 2. Add OpenAI API credentials for the GPT-4o-mini model. 3. Add Slack OAuth2 credentials and set the target channels for front-desk notifications and reply delivery. 4. Add Google Sheets OAuth2 credentials and update the spreadsheet/document ID and sheet tab used for logging.

View

Answer support questions from a knowledge base with OpenAI GPT-4o-mini

## Quick Overview This workflow powers a support chat experience that uses an OpenAI RAG agent with in-memory vector search to answer questions from a knowledge base, and includes a manual ingestion flow that fetches an external FAQ document, splits it into chunks, embeds it with OpenAI, and stores it for retrieval. ## How it works 1. Triggers when a new chat message is received. 2. Uses an OpenAI chat model with conversation memory to generate a support reply while following the system support guidelines. 3. Creates OpenAI embeddings for the user’s query and searches an in-memory vector knowledge base for the top matching snippets. 4. Uses the retrieved knowledge base content as a tool to ground the final answer and returns the response to the chat. 5. When run manually, fetches FAQ content from a specified URL via HTTP. 6. Splits the fetched text into chunks, converts it into documents, generates OpenAI embeddings, and inserts the vectors into the in-memory knowledge base for future queries. ## Setup 1. Add OpenAI credentials for both chat completions (GPT-4o-mini) and embeddings. 2. Update the source URL in the HTTP Request step (currently https://example.com/help-center/faq.txt) to point to your real FAQ/knowledge base content. 3. Run the manual ingestion flow once to populate the in-memory knowledge base before testing the chat trigger.

View

Need Custom Automation?

Get help designing a custom n8n workflow that connects your stack and fits your process.

Create AI-powered website chatbot with Langflow backend and custom branding

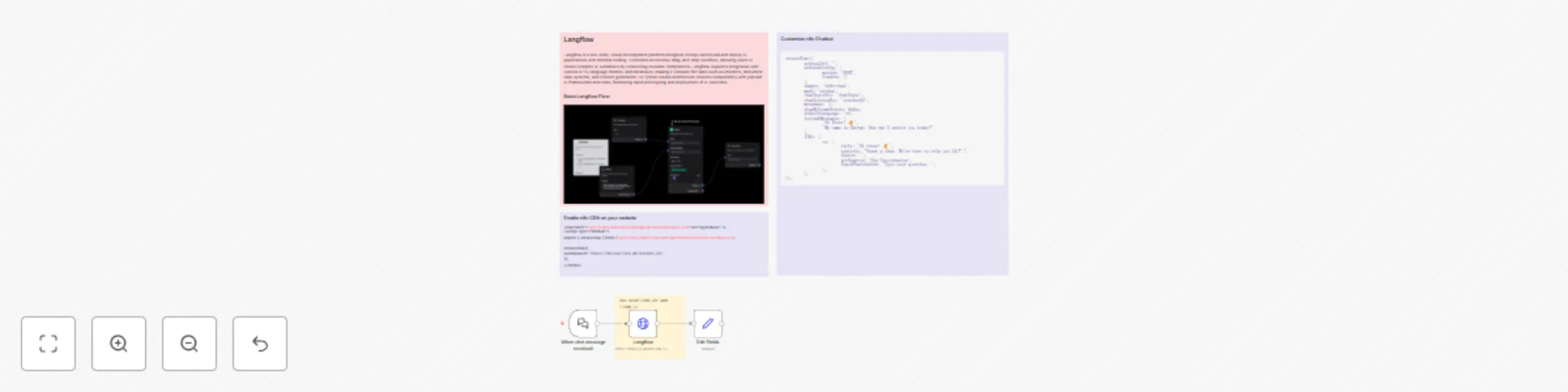

Workflow preview
