Important notice

This workflow is provided as-is. Please review and test before using in production.

1. Workflow Overview

This workflow integrates Flowise Multi Agent Chatflows into a custom branded n8n chatbot , enabling real time interaction between users and AI agents powered by large language models (LLMs). Key Ad...

Best for

Support Chatbot automation workflows
AI Chatbot automation workflows
intermediate n8n builders looking for reusable templates

Tools used

@n8n/n8n-nodes-langchain.chattrigger, n8n-nodes-base.set, n8n-nodes-base.stickynote, n8n-nodes-base.httprequest

Source and attribution

This workflow is cataloged by N8N Workflows and links back to its original n8n.io source page by Davide.

Original n8n.io source

1.1 Workflow description

Title: Create a branded AI chatbot for websites with Flowise multi-agent chatflows
Workflow name: Create a branded AI chatbot for websites with Flowise multi-agent chatflows

This workflow integrates Flowise Multi-Agent Chatflows into a custom-branded n8n chatbot, enabling real-time interaction between users and AI agents powered by large language models (LLMs).

Key Advantages:

✅ Easy Integration with Flowise:

Uses a low-code HTTP node to send user questions to Flowise's API (/api/v1/prediction/FLOWISE_ID) and receive intelligent responses.
Supports multi-agent chatflows, allowing for complex, dynamic interactions.

🎨 Customizable Chatbot UI:

Includes pre-built JavaScript for embedding the n8n chatbot into any website.
Provides customization options such as welcome messages, branding, placeholder text, chat modes (e.g., popup or embedded), and language support.

🔐 Secure & Configurable:

Authorization via Bearer token headers for Flowise API access.
Clearly marked notes in the workflow for setting environment variables like FLOWISE_URL and FLOW_ID.

How It Works

Chat Trigger: The workflow starts with the When chat message received node, which acts as a webhook to receive incoming chat messages from users.
HTTP Request to Flowise: The received message is forwarded to the Flowise node, which sends a POST request to a Flowise API endpoint (https://FLOWISEURL/api/v1/prediction/FLOWISE_ID). The request includes the user's input as a JSON payload ({"question": "{{ $json.chatInput }}"}) and uses HTTP header authentication (e.g., Authorization: Bearer FLOWSIE_API).
Response Handling: The response from Flowise is passed to the Edit Fields node, which maps the output ($json.text) for further processing or display.

Set Up Steps

Configure Flowise Integration:
- Replace FLOWISEURL and FLOWISE_ID in the HTTP Request node with your Flowise instance URL and flow ID.
- Ensure the Authorization header is set correctly in the credentials (e.g., Bearer FLOWSIE_API).
Embed n8n Chatbot:
- Use the provided JavaScript snippet in the sticky notes to embed the n8n chatbot on your website. Replace YOUR_PRODUCTION_WEBHOOK_URL with the webhook URL generated by the When chat message received node.
- Customize the chatbot's appearance and behavior (e.g., welcome messages, language, UI elements) using the createChat configuration options.
Optional Branding:
- Adjust the sticky note examples to include branding details, such as custom messages, colors, or metadata for the chatbot.
Activate Workflow:
- Toggle the workflow to "Active" in n8n and test the chat functionality end-to-end.

Ideal Use Cases:

Embedding branded AI assistants into websites.
Connecting Flowise-powered agents with customer support chatbots.
Creating dynamic, smart conversational flows with LLMs via n8n automation.

Need help customizing?

Contact me for consulting and support or add me on Linkedin.

1.2 Logical Blocks

This catalog entry is organized from the workflow JSON. The node-level section below shows the executable blocks available for review before importing the template.

2. Block-by-Block Analysis

Block 1 - When chat message received

Type / Role: @n8n/n8n-nodes-langchain.chatTrigger - chatTrigger
Config choices: Version 1.1

Block 2 - Edit Fields

Type / Role: n8n-nodes-base.set - set
Config choices: Version 3.4

Block 3 - Sticky Note

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 4 - Sticky Note1

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 5 - Sticky Note2

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 6 - Sticky Note3

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 7 - Flowise

Type / Role: n8n-nodes-base.httpRequest - httpRequest
Config choices: Version 4.2

3. Summary Table

Workflow	Create a branded AI chatbot for websites with Flowise multi-agent chatflows
Complexity	intermediate
Nodes	7
Categories	Support Chatbot, AI Chatbot
Author	Davide
Published	04 Jun 2025

4. Reproducing the Workflow from Scratch

1. Download the workflow JSON

Use the JSON export at /data/workflows/4651/4651.json as the source template for this automation.
2. Import the template into n8n

Open n8n, import the downloaded JSON, and review each node before activating the workflow.
3. Configure credentials and variables

Replace placeholder credentials, API keys, webhook URLs, account IDs, and environment-specific values with your own settings.
4. Test with sample data

Run the workflow manually or in a staging workspace, inspect node output, and confirm downstream systems receive the expected data.
5. Activate and monitor

Enable the workflow only after testing, then monitor executions, errors, and rate limits during the first production runs.

5. General Notes & Resources

Review imported nodes carefully before activation. This catalog entry is intended to help you inspect the workflow structure, understand required services, and find related templates faster.

Node names, credentials, schedules, webhook paths, and external service limits may need adjustment for your workspace.

Download workflow JSON Original n8n.io source Support Chatbot workflows AI Chatbot workflows

Frequently asked questions

What does Create a branded AI chatbot for websites with Flowise multi-agent chatflows do?

What do I need before importing this workflow?

Review the workflow JSON, configure any required credentials in n8n, and test the automation in a safe workspace before using it in production.

Can I customize this workflow?

Yes. Use the block-by-block analysis and the downloadable JSON to inspect each node, then adjust credentials, prompts, schedules, filters, or destinations for your Support Chatbot, AI Chatbot use case.

Davide

151 workflows

Nodes

@n8n/n8n-nodes-langchain.chattrigger n8n-nodes-base.set n8n-nodes-base.stickynote n8n-nodes-base.httprequest

Complexity

intermediate

Published 04 Jun 2025

Likes 0

View on n8n.io Download Workflow

Install path: /data/workflows/4651/4651.json

Share Your Workflow

Have a useful automation to share? Publish it and help the community.

Submit Your Template How to Submit

Related Workflows

Route RAG customer support across WhatsApp and Outlook with Pinecone and OpenRouter

## Quick overview A production-ready 3-workflow system that handles customer support across WhatsApp and Email using RAG-powered AI. Automatically routes queries, detects escalation intent, logs handoffs to Google Sheets, alerts your team via Slack, and lets agents resolve cases with a single slash command. ## How it works 1. A form trigger accepts PDF, DOCX, and TXT documents, chunks them with a token splitter, embeds them using Google Gemini, and stores them in your Pinecone vector store to build the AI knowledge base. 2. Incoming messages from WhatsApp Business Cloud API and Microsoft Outlook are each normalized into a unified contact format — capturing channel, contact ID, name, and message text — before merging into a single pipeline. 3. Every message is checked against a Google Sheets handoff tracker. If the contact is currently assigned to a human agent, the message is forwarded directly to Slack without any AI involvement. 4. For active (non-handoff) contacts, the AI Support Agent queries Pinecone via RAG, pulls context from a sliding conversation memory window, and returns a structured JSON output containing a reply and a handoff_requested flag. 5. If the AI detects escalation intent or has no answer, it sets handoff_requested: true — the contact is logged to Google Sheets, AI goes silent for that contact, and a detailed alert is posted to your Slack support channel. 6. Answers are routed back through the originating channel — WhatsApp replies via Business Cloud API, email replies via Microsoft Outlook — keeping every conversation native to its platform. 7. Support agents run /resolve [contact_id] in Slack to close a handoff. The workflow validates the input, updates the Google Sheets row with agent name and timestamp, re-enables AI for that contact, and confirms resolution in the Slack channel. ## Setup 1. Pinecone + Embeddings: Create a Pinecone index and add your Pinecone credential to the "Insert into Vector Store" and "Knowledge Base" nodes. Set your Google Gemini API credential on both Embeddings nodes (one in Workflow 1, one in Workflow 2). 2. WhatsApp: Connect your WhatsApp Business Cloud API credential to the WhatsApp Trigger node. Replace YOUR_WHATSAPP_PHONE_NUMBER_ID in both Send WhatsApp Message nodes. 3. Email: Add your Microsoft Outlook OAuth2 credential to the Outlook Trigger and the Send Email Answer node. 4. Handoff Sheet: Create a Google Sheet with a tab named Handoffs and these column headers exactly: contact_id | channel | contact_name | status | handoff_since | resolved_by | resolved_at. Set your Google Sheets credential and paste your Sheet ID into all four Google Sheets nodes across Workflows 2 and 3. 5. Slack: Create a Slack bot app, add it to your support channel, and set the credential in all three Slack nodes. Update the channel name if yours differs from #support-handoff. 6. AI Model: Add your OpenRouter (or OpenAI) API key to the Chat Model node. Swap the model slug in node settings as needed. 7. Slash Command: Activate Workflow 3 first to generate its production webhook URL. Then in your Slack app settings go to Slash Commands → Create New → set command to /resolve → paste the webhook URL → reinstall app to workspace. 8. Activate order: Workflow 1 (KB ingestion) → Workflow 3 (resolve handler) → Workflow 2 (main support flow). ## Requirements - n8n (self-hosted or cloud) - WhatsApp Business Cloud API account (Meta Developer App) - Microsoft 365 / Outlook account - Pinecone account - Google Gemini API key - OpenRouter or OpenAI API key or Any other LLM - Google Sheets - Slack workspace with a custom bot app ## Customization - Edit the system prompt in the AI Support Agent node to match your brand voice, support scope, and escalation rules - Swap Google Gemini Embeddings for OpenAI Embeddings — just replace the Embeddings node and ensure your Pinecone index dimensions match - dd more channels (Telegram, Instagram DM, etc.) by normalizing their payloads into the same contact format and feeding them into the Merge node - Adjust conversation memory window (default: 8 messages) in the Conversation Memory node - Trigger the resolve webhook from your CRM or helpdesk instead of Slack if preferred ## Additional info All three workflows must be active simultaneously for the system to function Handoff state is persisted in Google Sheets and survives n8n restarts or server reboots Once a contact enters handoff, the AI is completely silent for that contact — no accidental double-responses Document metadata (filename, uploader name, timestamp) is stored alongside vectors in Pinecone for full traceability Default chunk settings: 500 tokens / 100 overlap — tune in the Token Splitter node based on your document style Contact / Support 🔗 n8n Templates: n8n.io/creators/salmanmehboob 💼 LinkedIn: linkedin.com/in/salman-mehboob-pro 📧 Email: [email protected] 💬 WhatsApp: +92 306 746 6499

View

Answer hotel guest messages with GPT-4o mini, Slack, and Google Sheets

## Quick Overview This workflow receives guest messages via a webhook, uses OpenAI (GPT-4o-mini) to generate multilingual hotel support replies with an escalation flag, notifies the front desk in Slack when needed, logs the interaction to Google Sheets, and returns a JSON acknowledgement to the messaging gateway. ## How it works 1. Receives an inbound guest message through a webhook from a WhatsApp/Viber gateway. 2. Normalizes the incoming payload into a consistent structure (guest ID, channel, guest name, and message text). 3. Uses OpenAI (GPT-4o-mini) to generate a short reply in the guest’s language based on the built-in hotel information and outputs structured JSON with language, reply, category, and an escalate flag. 4. If the message needs human attention, posts the guest details and message to a Slack front-desk channel. 5. Routes the reply based on the reported channel and sends the generated reply text to Slack. 6. Appends the conversation data to Google Sheets and responds to the gateway with a JSON status including the detected language and whether it was escalated. ## Setup 1. Configure the inbound webhook URL in your WhatsApp/Viber gateway so it sends a payload containing at least channel, from, and text/message fields. 2. Add OpenAI API credentials for the GPT-4o-mini model. 3. Add Slack OAuth2 credentials and set the target channels for front-desk notifications and reply delivery. 4. Add Google Sheets OAuth2 credentials and update the spreadsheet/document ID and sheet tab used for logging.

View

Answer support questions from a knowledge base with OpenAI GPT-4o-mini

## Quick Overview This workflow powers a support chat experience that uses an OpenAI RAG agent with in-memory vector search to answer questions from a knowledge base, and includes a manual ingestion flow that fetches an external FAQ document, splits it into chunks, embeds it with OpenAI, and stores it for retrieval. ## How it works 1. Triggers when a new chat message is received. 2. Uses an OpenAI chat model with conversation memory to generate a support reply while following the system support guidelines. 3. Creates OpenAI embeddings for the user’s query and searches an in-memory vector knowledge base for the top matching snippets. 4. Uses the retrieved knowledge base content as a tool to ground the final answer and returns the response to the chat. 5. When run manually, fetches FAQ content from a specified URL via HTTP. 6. Splits the fetched text into chunks, converts it into documents, generates OpenAI embeddings, and inserts the vectors into the in-memory knowledge base for future queries. ## Setup 1. Add OpenAI credentials for both chat completions (GPT-4o-mini) and embeddings. 2. Update the source URL in the HTTP Request step (currently https://example.com/help-center/faq.txt) to point to your real FAQ/knowledge base content. 3. Run the manual ingestion flow once to populate the in-memory knowledge base before testing the chat trigger.

View

Need Custom Automation?

Get help designing a custom n8n workflow that connects your stack and fits your process.

Create a branded AI chatbot for websites with Flowise multi-agent chatflows

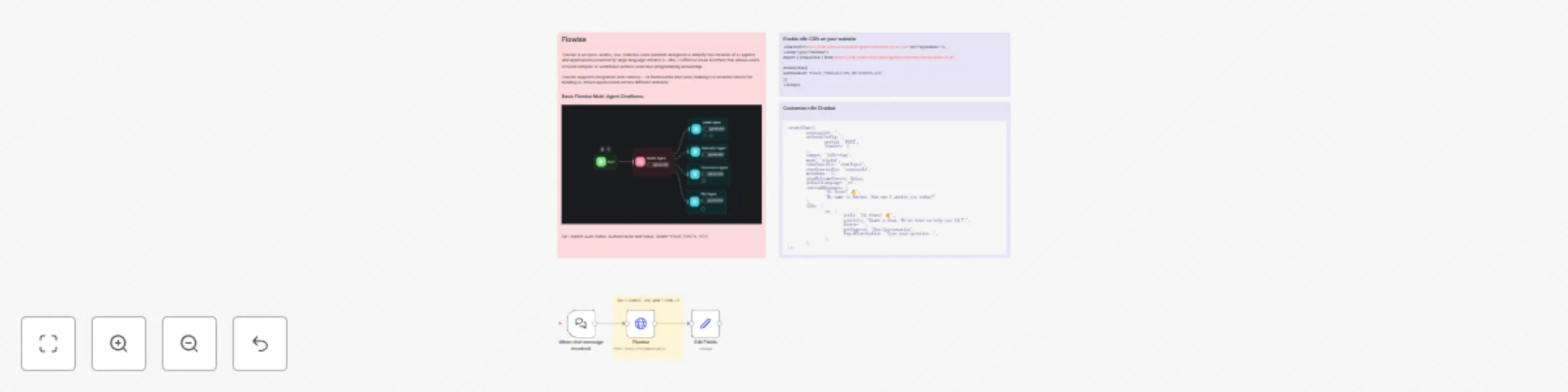

Workflow preview
