Important notice

This workflow is provided as-is. Please review and test before using in production.

1. Workflow Overview

How It Works ️ This workflow is a sophisticated, end to end solution that automates the entire billing lifecycle, from invoice creation to intelligent payment reminders and status tracking. It's d...

Best for

Invoice Processing automation workflows
Multimodal AI automation workflows
advanced n8n builders looking for reusable templates

Tools used

n8n-nodes-base.googlesheetstrigger, n8n-nodes-base.googledocs, @n8n/n8n-nodes-langchain.openai, n8n-nodes-base.gmail, n8n-nodes-base.wait, n8n-nodes-base.httprequest, n8n-nodes-base.if, n8n-nodes-base.slack

Source and attribution

This workflow is cataloged by N8N Workflows and links back to its original n8n.io source page by Marth.

Original n8n.io source

1.1 Workflow description

Title: Automated invoice workflow with smart reminders using GPT-4, Stripe, and Google Workspace
Workflow name: Automated invoice workflow with smart reminders using GPT-4, Stripe, and Google Workspace

How It Works ⚙️

This workflow is a sophisticated, end-to-end solution that automates the entire billing lifecycle, from invoice creation to intelligent payment reminders and status tracking. It's designed to give you complete control over your cash flow without the manual effort.

Smart Invoice Creation: The workflow is triggered when new billing data is added to your Google Sheets. It then uses a Google Docs template to automatically create a professional, personalized PDF invoice. Optionally, it can use OpenAI to generate a detailed description.
Payment Monitoring: An HTTP Request node integrates with a payment gateway's API (e.g., Stripe, Midtrans) to check the real-time payment status of the invoice.
Intelligent Reminders: Based on the payment status check, an If node determines whether to send a reminder. It sends polite, pre-due date reminders and more urgent post-due reminders only if the invoice remains unpaid.
Multi-Channel Alerts: If an invoice becomes overdue, the workflow sends an internal alert to your team's Slack channel, ensuring you're always aware of potential cash flow issues.
Automated Status Updates: The system automatically updates the status of the invoice in your Google Sheets database (e.g., Sent, Overdue, Paid), providing a real-time dashboard of your finances.

How to Set Up 🛠️

Import the Workflow: Copy the provided workflow JSON and import it into your n8n instance.
Configure Credentials:
- Google Sheets: Add your OAuth2 credential.
- Google Docs: Add your OAuth2 credential.
- Gmail: Add your OAuth2 credential.
- OpenAI (Optional): Add your API Key.
- Slack: Add your Bot Token credential.
- Stripe/Midtrans (or other payment gateway): Add your API Key credential for the HTTP Request node.
Customize Workflow Nodes:
- Node 1 (Google Sheets Trigger): Select your billing data spreadsheet and sheet name.
- Node 3 (Google Docs): Replace the placeholder [YOUR GOOGLE DOCS INVOICE TEMPLATE ID] with your own template ID.
- Node 6 (HTTP Request): Replace the API URL with your payment gateway's endpoint for checking invoice status.
- Nodes 8 & 10 (Gmail & Slack): Replace the email addresses and Slack channel ID placeholders.
Save & Activate: Once all settings and credentials are configured, save the workflow and click the "Inactive" toggle in the top-right corner to make it live.

1.2 Logical Blocks

This catalog entry is organized from the workflow JSON. The node-level section below shows the executable blocks available for review before importing the template.

2. Block-by-Block Analysis

Block 1 - Google Sheets Trigger

Type / Role: n8n-nodes-base.googleSheetsTrigger - googleSheetsTrigger
Config choices: Version 1

Block 2 - Create Invoice from Template

Type / Role: n8n-nodes-base.googleDocs - googleDocs
Config choices: Version 2

Block 3 - AI Invoice Content Generation

Type / Role: @n8n/n8n-nodes-langchain.openAi - openAi
Config choices: Version 1.8

Block 4 - Send Invoice

Type / Role: n8n-nodes-base.gmail - gmail
Config choices: Version 2.1

Block 5 - Until 3 Days Before Due Date

Type / Role: n8n-nodes-base.wait - wait
Config choices: Version 1.1

Block 6 - Check Payment Status

Type / Role: n8n-nodes-base.httpRequest - httpRequest
Config choices: Version 4.2

Block 7 - Is Paid?

Type / Role: n8n-nodes-base.if - if
Config choices: Version 2.2

Block 8 - Pre-Due Reminder

Type / Role: n8n-nodes-base.gmail - gmail
Config choices: Version 2.1

Block 9 - Until 2 Days After Due Date

Type / Role: n8n-nodes-base.wait - wait
Config choices: Version 1.1

Block 10 - Overdue Alert

Type / Role: n8n-nodes-base.slack - slack
Config choices: Version 2.3

Block 11 - Update Status

Type / Role: n8n-nodes-base.googleSheets - googleSheets
Config choices: Version 4.6

Block 12 - Sticky Note

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 13 - Sticky Note1

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 14 - Sticky Note2

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 15 - Sticky Note3

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

Block 16 - Sticky Note4

Type / Role: n8n-nodes-base.stickyNote - stickyNote
Config choices: Version 1

3. Summary Table

Workflow	Automated invoice workflow with smart reminders using GPT-4, Stripe, and Google Workspace
Complexity	advanced
Nodes	16
Categories	Invoice Processing, Multimodal AI
Author	Marth
Published	27 Jul 2025

4. Reproducing the Workflow from Scratch

1. Download the workflow JSON

Use the JSON export at /data/workflows/6515/6515.json as the source template for this automation.
2. Import the template into n8n

Open n8n, import the downloaded JSON, and review each node before activating the workflow.
3. Configure credentials and variables

Replace placeholder credentials, API keys, webhook URLs, account IDs, and environment-specific values with your own settings.
4. Test with sample data

Run the workflow manually or in a staging workspace, inspect node output, and confirm downstream systems receive the expected data.
5. Activate and monitor

Enable the workflow only after testing, then monitor executions, errors, and rate limits during the first production runs.

5. General Notes & Resources

Review imported nodes carefully before activation. This catalog entry is intended to help you inspect the workflow structure, understand required services, and find related templates faster.

Node names, credentials, schedules, webhook paths, and external service limits may need adjustment for your workspace.

Download workflow JSON Original n8n.io source Invoice Processing workflows Multimodal AI workflows

Frequently asked questions

What does Automated invoice workflow with smart reminders using GPT-4, Stripe, and Google Workspace do?

What do I need before importing this workflow?

Review the workflow JSON, configure any required credentials in n8n, and test the automation in a safe workspace before using it in production.

Can I customize this workflow?

Yes. Use the block-by-block analysis and the downloadable JSON to inspect each node, then adjust credentials, prompts, schedules, filters, or destinations for your Invoice Processing, Multimodal AI use case.

Marth

52 workflows

Nodes

n8n-nodes-base.googlesheetstrigger n8n-nodes-base.googledocs @n8n/n8n-nodes-langchain.openai n8n-nodes-base.gmail n8n-nodes-base.wait n8n-nodes-base.httprequest n8n-nodes-base.if n8n-nodes-base.slack

Complexity

advanced

Published 27 Jul 2025

Likes 0

View on n8n.io Download Workflow

Install path: /data/workflows/6515/6515.json

Share Your Workflow

Have a useful automation to share? Publish it and help the community.

Submit Your Template How to Submit

Related Workflows

Send Stripe payment invoices with Gmail, Google Drive, and WhatsApp

## Quick overview This workflow triggers on successful Stripe payment events, generates and finalizes invoices, then formats and sends invoice details via Gmail, stores invoice PDFs in Google Drive, and notifies an admin through WhatsApp using Rapiwa. ## How it works 1. Triggers when Stripe reports a successful payment, invoice payment, or checkout session completion. 2. Checks whether the payment amount matches the amount received and, if it does not, calculates a payment summary for review. 3. Retrieves the Stripe customer and creates then finalizes a Stripe invoice configured to be sent with Net 30 terms. 4. Fetches invoices created since the event time, iterates through the results, and keeps only Stripe objects that are invoices. 5. Pulls Stripe checkout session line items and formats company, customer, totals, and a custom invoice number for messaging and file naming. 6. Emails the customer the invoice details and PDF link via Gmail, sends an admin WhatsApp alert via Rapiwa, downloads the PDF, and uploads it to Google Drive. ## Setup 1. Add Stripe API credentials, enable the Stripe webhook events used by the trigger, and copy the webhook URL into your Stripe dashboard. 2. Add Gmail OAuth2 credentials and confirm the workflow’s Gmail “send to” mapping matches the email field returned by your Stripe checkout session. 3. Add Google Drive OAuth2 credentials and set the target Drive folder in the Google Drive upload step. 4. Add Rapiwa API credentials and replace the placeholder WhatsApp number with your admin number. 5. Update the company identity, banking details, and any invoice terms (for example days until due) in the invoice formatting and Stripe invoice creation steps. ## Requirements - **Stripe API**: Connects to the Stripe account to listen for webhooks (`payment_intent.succeeded`, `checkout.session.completed`, etc.) and perform API operations (retrieve customers, create invoices, finalize invoices). - **Gmail OAuth2**: Used to send the generated invoice PDF and details to the customer. - *Google Drive OAuth2**: Used to upload and save the generated PDF invoices to a cloud storage folder. - **Rapiwa API**: Used to send WhatsApp notifications to the admin regarding order details and workflow status. ## Customization - Adjust invoice settings in the **Create Stripe Invoice** and **Finalize Invoice** nodes (e.g., due date, collection method, - Customize the customer email content in the **Email (Send Invoice)** node. - Update the **Invoice Save to Google Drive** node's `folderId` to store PDFs in a specific Google Drive folder. ## Additional info • Uses Stripe events for payment validation and invoice generation • Update company details in the **Format Invoice Data** node to match your business • Dynamically fetches purchased items from Stripe sessions • Validates payment amounts before processing invoices • Replace the placeholder WhatsApp number in the **Rapiwa** node with your admin number

View

Send escalating invoice reminders with Notion, Claude, Gmail and Telegram

## Quick overview This workflow runs every morning to pull unpaid invoices from a Notion database, calculates how overdue each one is, uses Anthropic Claude to draft an escalation-appropriate reminder, emails the client via Gmail, updates the invoice record in Notion, and alerts you in Telegram for high-risk late payments. ## How it works 1. Runs every day at 8:00 AM on a schedule. 2. Fetches all unpaid invoice pages from a Notion database and normalizes the key invoice fields into a flat structure. 3. Calculates days overdue from the due date, determines which reminder tier (1/2/3) is due based on thresholds and what was already sent, and skips invoices that are not yet due for the next escalation. 4. Uses Anthropic Claude to generate a subject line and message body that matches the escalation tier. 5. Sends the reminder email to the client via Gmail and updates the Notion page to record the latest reminder tier sent. 6. If the invoice reaches the final (tier 3) escalation, sends a Telegram message to the freelancer to flag the invoice as a payment risk. ## Setup 1. Create or choose a Notion invoice database with the properties referenced by the workflow (including Status, Due Date, Client Email, and Reminder Tier Sent) and paste the database ID into the Notion node configuration. 2. Add credentials for Notion, Anthropic (Claude), Gmail, and Telegram, and select them in their respective nodes. 3. Set your Telegram chat ID in the Telegram node and ensure your Notion Status values match the workflow filter (for example, invoices to remind are marked as “unpaid”).

View

Recover overdue invoices with GPT-4o-mini, Gmail, Google Sheets, and Slack

## Quick overview This workflow runs daily to read overdue invoices from Google Sheets, uses OpenAI (GPT-4o-mini) to draft personalized reminder emails and determine escalation level, sends emails via Gmail, posts Slack alerts for no-invoice runs or AI errors, and logs results back to Google Sheets. ## How it works 1. Runs every 24 hours on a schedule. 2. Reads rows from the “invoices” tab in Google Sheets and, if no invoice value is found, posts a “no overdue invoices” message to Slack. 3. For each invoice, sends the invoice details to OpenAI (GPT-4o-mini) to determine an escalation level, draft an HTML email, and recommend whether to escalate. 4. Parses the AI’s JSON response (falling back to a default reminder if parsing fails) and sends the recovery email to the client via Gmail. 5. If the AI recommends escalation, sends an internal escalation email via Gmail to the legal/AR team with invoice details and the AI summary. 6. Updates the original invoice row in Google Sheets with the escalation level and summary, then appends an audit row to the “Recovery sheet” tab including the email subject, summary, and sent message label ID. 7. If the AI step errors, posts an error alert to Slack and continues processing. ## Setup 1. Add Google Sheets OAuth2 credentials and replace YOUR_GOOGLE_SHEET_ID, ensuring the “invoices” and “Recovery sheet” tabs and columns (Invoice, Client, Email, Amount, Due Date, Days Overdue, Reminders Sent, plus row_number) match the workflow. 2. Add an OpenAI credential for the GPT-4o-mini model. 3. Add Gmail OAuth2 credentials and set the reply-to address ([email protected]) and escalation recipient ([email protected]) to your real emails. 4. Add Slack OAuth2 credentials, replace YOUR_SLACK_CHANNEL_ID, and choose the channel that should receive status and error alerts.

View

Need Custom Automation?

Get help designing a custom n8n workflow that connects your stack and fits your process.

Automated invoice workflow with smart reminders using GPT-4, Stripe, and Google Workspace

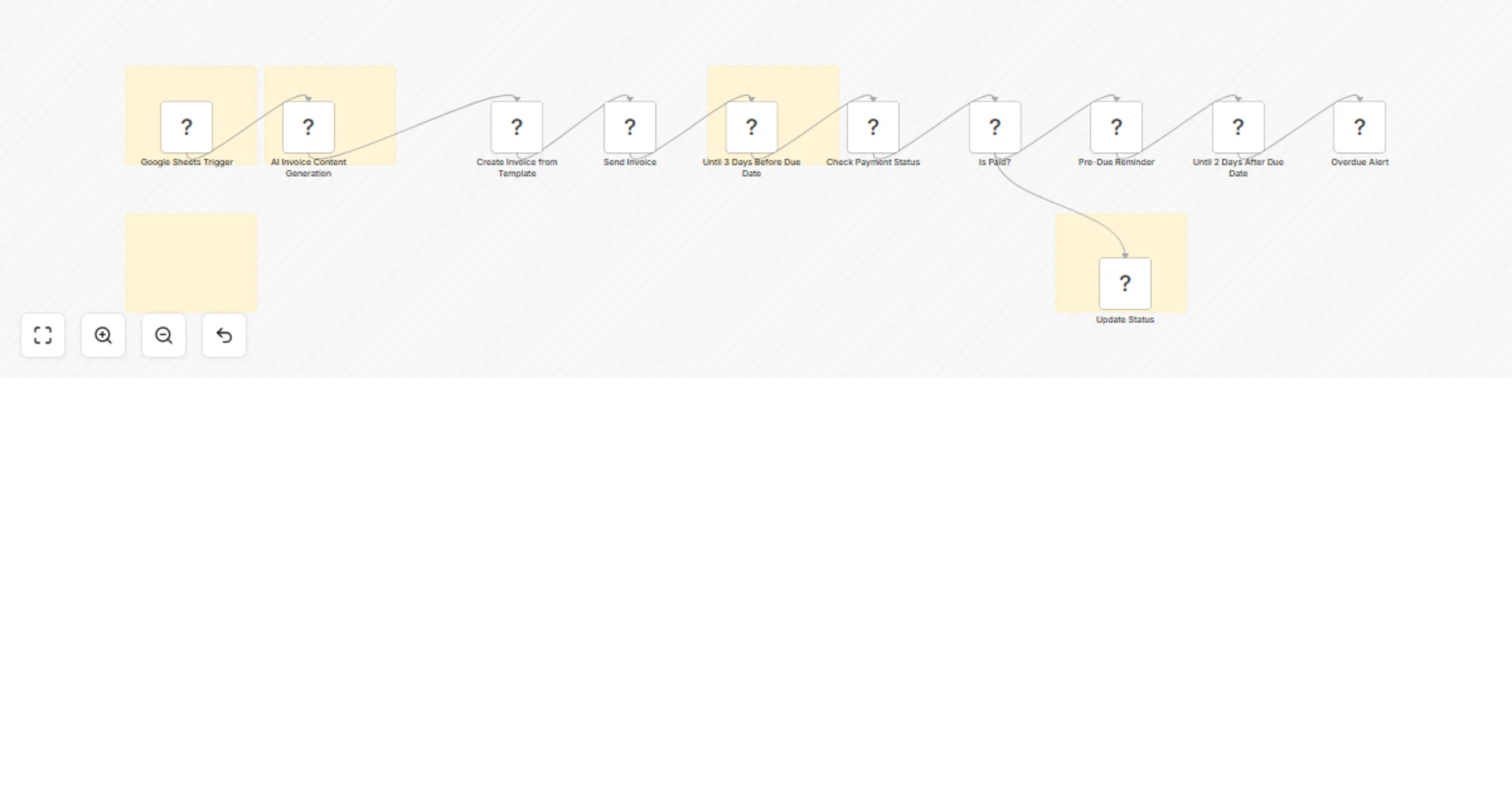

Workflow preview
