Validate mobile app deep links in GitHub PRs with automated testing

GitHub PR Deep-Link & Routing Validator (ExecuteCommand + GitHub Comment)

🚀 Quick-Start TL;DR

1. Import the workflow JSON into n8n (Cloud or self-hosted).
2. Create a GitHub Personal Access Token with repo:public_repo (or repo) scope and add it to n8n credentials.
3. Open the “CONFIG - Variables” node and tweak:
   • manifestPath – path to your deep-link manifest (AndroidManifest.xml, Info.plist, etc.).
   • scriptPath – helper script that boots the emulator & checks each route.
4. Enable the workflow. Every push to a PR branch triggers validation and posts a Markdown pass/fail matrix back to the PR.

What It Does

This workflow delivers an automated, CI-friendly smoke-test of every deep link defined in your mobile app. On each push to an open GitHub PR, it:

1. Clones the PR branch.
2. Runs a lightweight validation script (provided) that spins up an emulator/simulator, attempts to open each declared URI, and records OK/FAIL.
3. Generates a Markdown table summarizing the results.
4. Comments that table in the PR, letting reviewers spot broken schemes at a glance.

Who’s It For

• Mobile teams maintaining Android or iOS deep-link manifests.
• CI engineers who need a simple, language-agnostic check they can publish to each PR.
• OSS maintainers wanting a template-library-ready n8n recipe.

Requirements

How It Works

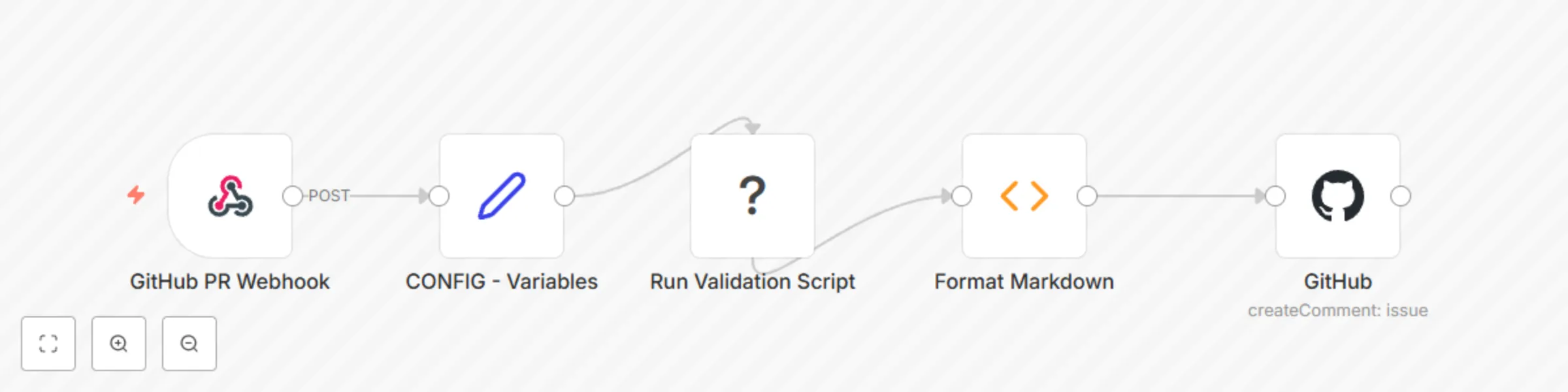

1. GitHub Trigger fires on pull_request → synchronize (i.e., each push to the PR branch).
2. Set (CONFIG - Variables) centralises repo URL, manifest path, script path, timeout, and comment mode.
3. ExecuteCommand clones the repo and calls the validation script.
4. Function converts CLI CSV output into a Markdown table.
5. GitHub node posts (or appends) the results as a comment on the PR.

How To Set Up

1. Auth: In n8n, add a GitHub credential with your PAT named “GitHub Personal Access Token”.
2. Import: Settings → Import workflow and paste the JSON above.
3. Edit Config: Double-click CONFIG - Variables and change any default values.
4. Validation Script: Commit scripts/validate_deeplinks.sh into your repo (see sample below).
5. Enable the workflow. Push to any PR branch and watch the comment appear.

Sample validate_deeplinks.sh

#!/usr/bin/env bash
set -e
while getopts "m:" opt; do
  case $opt in
    m) MANIFEST="$OPTARG" ;;
  esac
done

echo "⇨ Parsing deep links from $MANIFEST"
# rudimentary parser—replace with something smarter for XML/Plist
grep -oE 'http[s]?://[^" ]+' "$MANIFEST" | while read -r uri; do
  if adb shell am start -W -a android.intent.action.VIEW -d "$uri" >/dev/null 2>&1; then
    echo "$uri,OK"
  else
    echo "$uri,FAIL"
  fi
done

How To Customise

• Multiple manifests: duplicate the Execute-Command step or extend the script to accept a list.
• Replace-latest comment: switch commentMode to replace-latest and update the GitHub node to search for the newest bot comment before editing.
• Status checks instead of comments: call the GitHub → “Create Commit Status” endpoint.

Add-Ons

Use Case Examples

1. Ensure new features don’t break existing URI schemes before merge.
2. Catch mis-typed hosts/paths introduced by junior devs.
3. Baseline check on dependency bumps (e.g., upgrading Navigation libraries).
4. Validate white-label builds that override path segments.
5. Automated QA gate that blocks merge if any link fails. (…and many more!)

Troubleshooting Guide
