Block 1 - When chat message received
- Type / Role
- @n8n/n8n-nodes-langchain.chatTrigger - chatTrigger
- Config choices
- Version 1.1
This workflow is provided as-is. Please review and test before using in production.
️ How It Works: LocalRAG.AI ️ Note: This system only works for self hosted n8n instances. It will not function on n8n.cloud or other remote setups. LocalRAG.AI is a private, on prem AI assistant ...
@n8n/n8n-nodes-langchain.chattrigger, @n8n/n8n-nodes-langchain.agent, @n8n/n8n-nodes-langchain.lmchatollama, @n8n/n8n-nodes-langchain.memorypostgreschat, @n8n/n8n-nodes-langchain.vectorstoreqdrant, @n8n/n8n-nodes-langchain.lmollama, @n8n/n8n-nodes-langchain.embeddingsollama, @n8n/n8n-nodes-langchain.toolvectorstore
This workflow is cataloged by N8N Workflows and links back to its original n8n.io source page by David Olusola.
Original n8n.io source⚠️ Note: This system only works for self-hosted n8n instances. It will not function on n8n.cloud or other remote setups. LocalRAG.AI is a private, on-prem AI assistant that uses your own documents to answer questions intelligently. It combines LangChain, Ollama, Qdrant, and Postgres into a powerful AI pipeline — all running locally for maximum data privacy.
Monitors Your Google Drive Folders for new or updated files. Downloads the file, extracts the text, and prepares it. Generates Embeddings using your local Ollama model (e.g., LLaMA 3). Stores them in Qdrant, your local vector database. During a chat, it: Uses vector search to retrieve relevant chunks. Combines them with chat history stored in Postgres. Responds via a LangChain AI agent using your local model. 🛠️ Setup Steps (Self-hosted Only) Install and Self-host n8n (e.g., via Docker). Set up your Ollama instance locally and load your desired LLM (e.g., llama3). Deploy Qdrant locally for vector storage. Connect a Postgres DB to store chat history. Create and import the workflow in n8n. Authenticate Google Drive to monitor folders. Connect credentials for Ollama, Qdrant, Postgres in the n8n workflow. Start chatting through the Webhook Trigger or custom UI. 🧠 Perfect For: Research teams handling confidential data Internal documentation Q&A AI chatbots that don’t rely on OpenAI or cloud
This catalog entry is organized from the workflow JSON. The node-level section below shows the executable blocks available for review before importing the template.

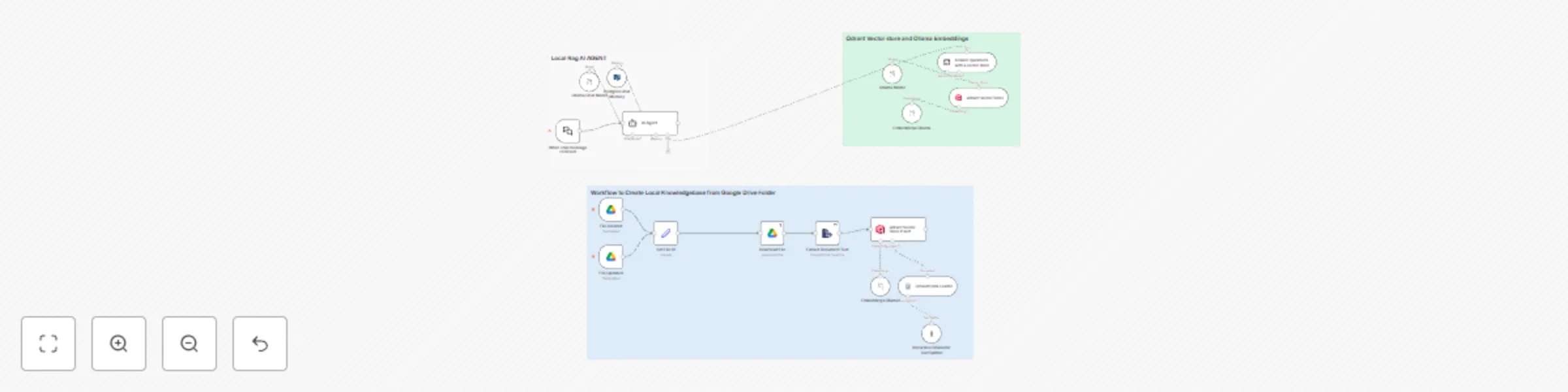

| Workflow | Create a private document Q&A system with Llama3, Postgres, Qdrant and Google Drive |
|---|---|
| Complexity | advanced |
| Nodes | 20 |
| Categories | Internal Wiki, AI RAG |
| Author | David Olusola |
| Published | 01 Jul 2025 |
Use the JSON export at /data/workflows/5508/5508.json as the source template for this automation.
Open n8n, import the downloaded JSON, and review each node before activating the workflow.
Replace placeholder credentials, API keys, webhook URLs, account IDs, and environment-specific values with your own settings.
Run the workflow manually or in a staging workspace, inspect node output, and confirm downstream systems receive the expected data.
Enable the workflow only after testing, then monitor executions, errors, and rate limits during the first production runs.
Review imported nodes carefully before activation. This catalog entry is intended to help you inspect the workflow structure, understand required services, and find related templates faster.
Node names, credentials, schedules, webhook paths, and external service limits may need adjustment for your workspace.
️ How It Works: LocalRAG.AI ️ Note: This system only works for self hosted n8n instances. It will not function on n8n.cloud or other remote setups. LocalRAG.AI is a private, on prem AI assistant ...
Review the workflow JSON, configure any required credentials in n8n, and test the automation in a safe workspace before using it in production.
Yes. Use the block-by-block analysis and the downloadable JSON to inspect each node, then adjust credentials, prompts, schedules, filters, or destinations for your Internal Wiki, AI RAG use case.
