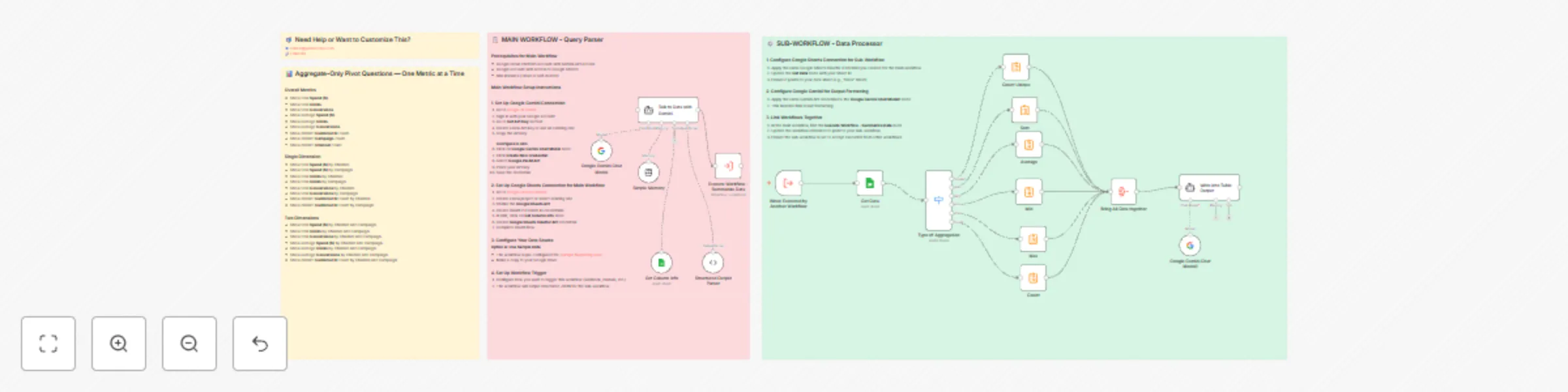

Natural language Google Sheets data analysis with Gemini AI

This n8n workflow template creates an efficient data analysis system that uses Google Gemini AI to interpret user questions about spreadsheet data and processes them through a specialized sub-workflow for optimized token usage and faster responses.

What This Workflow Does

• Smart Query Parsing: Uses Gemini AI to understand natural language questions about your data
• Efficient Processing: Routes calculations through a dedicated sub-workflow to minimize token consumption
• Structured Output: Automatically identifies the column, aggregation type, and grouping levels from user queries
• Multiple Aggregation Types: Supports sum, average, count, count distinct, min, and max operations
• Flexible Grouping: Can aggregate data by single or multiple dimensions
• Token Optimization: Processes large datasets without overwhelming AI context limits

Tools Used

• Google Gemini Chat Model - Natural language query understanding and response formatting
• Google Sheets Tool - Data access and column metadata extraction
• Execute Workflow - Sub-workflow processing for data calculations
• Structured Output Parser - Converts AI responses to actionable parameters
• Memory Buffer Window - Basic conversation context management
• Switch Node - Routes to appropriate aggregation method
• Summarize Nodes - Performs various data aggregations

📋 MAIN WORKFLOW - Query Parser

What This Workflow Does

The main workflow receives natural language questions from users and converts them into structured parameters that the sub-workflow can process. It uses Google Gemini AI to understand the intent and extract the necessary information.

Prerequisites for Main Workflow

• Google Cloud Platform account with Gemini API access
• Google account with access to Google Sheets
• n8n instance (cloud or self-hosted)

Main Workflow Setup Instructions

1. Import the Main Workflow

1. Copy the main workflow JSON provided
2. In your n8n instance, go to Workflows → Import from JSON
3. Paste the JSON and click Import
4. Save with name: "Gemini Data Query Parser"

2. Set Up Google Gemini Connection

1. Go to Google AI Studio
2. Sign in with your Google account
3. Go to Get API Key section
4. Create a new API key or use an existing one
5. Copy the API key

Configure in n8n:

1. Click on Google Gemini Chat Model node
2. Click Create New Credential
3. Select Google PaLM API
4. Paste your API key
5. Save the credential

3. Set Up Google Sheets Connection for Main Workflow

1. Go to Google Cloud Console
2. Create a new project or select existing one
3. Enable the Google Sheets API
4. Create OAuth 2.0 Client ID credentials
5. In n8n, click on Get Column Info node
6. Create Google Sheets OAuth2 API credential
7. Complete OAuth flow

4. Configure Your Data Source

Option A: Use Sample Data

• The workflow is pre-configured for: Sample Marketing Data
• Make a copy to your Google Drive

Option B: Use Your Own Sheet

1. Update Get Column Info node with your Sheet ID
2. Ensure you have a "Columns" sheet for metadata
3. Update sheet references as needed

5. Set Up Workflow Trigger

1. Configure how you want to trigger this workflow (webhook, manual, etc.)
2. The workflow will output structured JSON for the sub-workflow

---

⚙️ SUB-WORKFLOW - Data Processor

What This Workflow Does

The sub-workflow receives structured parameters from the main workflow and performs the actual data calculations. It handles fetching data, routing to appropriate aggregation methods, and formatting results.

Sub-Workflow Setup Instructions

1. Import the Sub-Workflow

1. Create a new workflow in n8n
2. Copy the sub-workflow JSON (embedded in the Execute Workflow node)
3. Import as a separate workflow
4. Save with name: "Data Processing Sub-Workflow"

2. Configure Google Sheets Connection for Sub-Workflow

1. Apply the same Google Sheets OAuth2 credential you created for the main workflow
2. Update the Get Data node with your Sheet ID
3. Ensure it points to your data sheet (e.g., "Data" sheet)

3. Configure Google Gemini for Output Formatting

1. Apply the same Gemini API credential to the Google Gemini Chat Model1 node
2. This handles final result formatting

4. Link Workflows Together

1. In the main workflow, find the Execute Workflow - Summarize Data node
2. Update the workflow reference to point to your sub-workflow
3. Ensure the sub-workflow is set to accept execution from other workflows

Sub-Workflow Components

• When Executed by Another Workflow: Trigger that receives parameters
• Get Data: Fetches all data from Google Sheets
• Type of Aggregation: Switch node that routes based on aggregation type
• Multiple Summarize Nodes: Handle different aggregation types (sum, avg, count, etc.)
• Bring All Data Together: Combines results from different aggregation paths
• Write into Table Output: Formats final results using Gemini AI

Example Usage

Once both workflows are set up, you can ask questions like:

Overall Metrics:

• "Show total Spend ($)"
• "Show total Clicks"
• "Show average Conversions"

Single Dimension:

• "Show total Spend ($) by Channel"
• "Show total Clicks by Campaign"

Two Dimensions:

• "Show total Spend ($) by Channel and Campaign"
• "Show average Clicks by Channel and Campaign"

Data Flow Between Workflows

1. Main Workflow: User question → Gemini AI → Structured JSON output
2. Sub-Workflow: Receives JSON → Fetches data → Performs calculations → Returns formatted table

---
