Comprehensive SEO keyword research with OpenAI & DataForSEO analytics to NocoDB
# AI-Powered SEO Keyword Research Workflow with n8n
> automates comprehensive keyword research for content creation
## Table of Contents
1. [Introduction](#introduction)
2. [Workflow Architecture](#workflow-architecture)
3. [NocoDB Integration](#nocodb-integration)
4. [Data Flow](#data-flow)
5. [Core Components](#core-components)
6. [Setup Requirements](#setup-requirements)
7. [Possible Improvements](#possible-improvements)
## Introduction
This n8n workflow automates SEO keyword research using AI and data-driven analytics. It combines OpenAI's language models with DataForSEO's analytics to generate comprehensive keyword strategies for content creation. The workflow is triggered by a webhook from NocoDB, processes the input data through multiple stages, and returns a detailed content brief with optimized keywords.

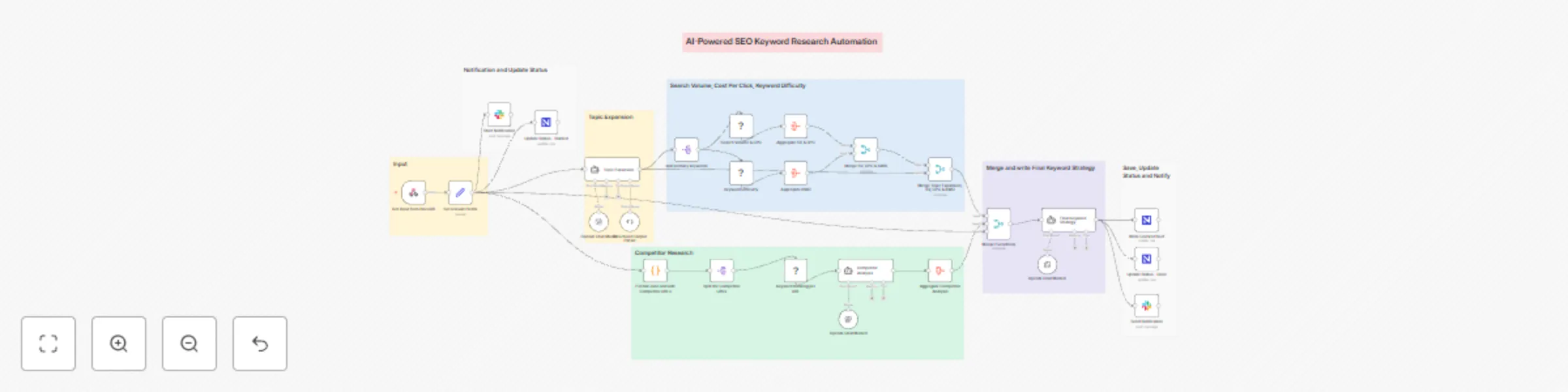

## Workflow Architecture
The workflow follows a structured process:
1. **Input Collection**: Receives data via webhook from NocoDB
2. **Topic Expansion**: Generates keywords using AI
3. **Keyword Metrics Analysis**: Gathers search volume, CPC, and difficulty metrics
4. **Competitor Analysis**: Analyzes competitor content for ranking keywords
5. **Final Strategy Creation**: Combines all data to generate a comprehensive keyword strategy
6. **Output Storage**: Saves results back to NocoDB and sends notifications
## NocoDB Integration
### Database Structure
The workflow integrates with two tables in NocoDB:
#### Input Table Schema
This table collects the input parameters for the keyword research:
| Field Name | Type | Description |
| --------------- | ------------- | --------------------------------------------------------------------------- |
| ID | Auto Number | Unique identifier |
| Primary Topic | Text | The main keyword/topic to research |
| Competitor URLs | Text | Comma-separated list of competitor websites |
| Target Audience | Single Select | Description of the target audience (Solopreneurs, Marketing Managers, etc.) |
| Content Type | Single Select | Type of content (Blog, Product page, etc.) |
| Location | Single Select | Target geographic location |
| Language | Single Select | Target language for keywords |
| Status | Single Select | Workflow status (Pending, Started, Done) |
| Start Research | Checkbox | Active Workflow when you set this to true |
#### Output Table Schema
This table stores the generated keyword strategy:
| Field Name | Type | Description |
| ------------------ | ----------- | ------------------------------------------------ |
| ID | Auto Number | Unique identifier |
| primary_topic_used | Text | The topic that was researched |
| report_content | Long Text | The complete keyword strategy in Markdown format |
| generatedAt | Datetime | Automatically generated by NocoDb |
### Webhook Settings
NocoDB Webhook Settings
## Data Flow
The workflow handles data in the following sequence:
1. **Webhook Trigger**: Receives input from NocoDB when a new keyword research request is created
2. **Field Extraction**: Extracts primary topic, competitor URLs, audience, and other parameters
3. **AI Topic Expansion**: Uses OpenAI to generate related keywords, categorized by type and intent
4. **Keyword Analysis**: Sends primary keywords to DataForSEO to get search volume, CPC, and difficulty
5. **Competitor Research**: Analyzes competitor pages to identify their keyword rankings
6. **Strategy Generation**: Combines all data to create a comprehensive keyword strategy
7. **Storage & Notification**: Saves the strategy to NocoDB and sends a notification to Slack
## Core Components
### 1. Topic Expansion
This component uses OpenAI and a structured output parser to generate:
- 20 primary keywords
- 30 long-tail keywords with search intent
- 15 question-based keywords
- 10 related topics
### 2. DataForSEO Integration
Two API endpoints are used:
- **Search Volume & CPC**: Gets monthly search volume and cost-per-click data
- **Keyword Difficulty**: Evaluates how difficult it would be to rank for each keyword
### 3. Competitor Analysis
This component:
- Analyzes competitor URLs to identify which keywords they rank for
- Identifies content gaps or opportunities
- Determines the search intent their content targets
### 4. Final Keyword Strategy
The AI-generated strategy includes:
- Top 10 primary keywords with metrics
- 15 long-tail opportunities with low competition
- 5 question-based keywords to address in content
- Content structure recommendations
- 3 potential content titles optimized for SEO
## Setup Requirements
To use this workflow, you'll need:
1. **n8n Instance**: Either cloud or self-hosted
2. **NocoDB Account**: For data input and storage
3. **API Keys**:
- OpenAI API key
- DataForSEO API credentials
- Slack API token (for notifications)
4. **Database Setup**: Create the required tables in NocoDB as described above
## Possible Improvements
The workflow could be enhanced with the following improvements:
### Enhanced Keyword Strategy
- Add topic clustering to group related keywords
- Enhance the final output with more specific content structure suggestions
- Include word count recommendations for each content section
### Additional Data Sources
- Integrate Google Search Console data for existing content optimization
- Add Google Trends data to identify rising topics
- Include sentiment analysis for different keyword groups
### Improved Competitor Analysis
- Analyze content length and structure from top-ranking pages
- Identify common backlink sources for competitor content
- Extract content headings to better understand content organization
### Automation Enhancements
- Add scheduling capabilities to run updates on existing content
- Implement content performance tracking over time
- Create alert thresholds for changes in keyword difficulty or search volume
---
## Example Output
Here is an example Output the Workflow generated based on the following inputs.
**Inputs**:
- Primary Topic: `AI Automation`
- Competitor URLs: `n8n.io, zapier.com, make.com`
- Target Audience: `Small Business Owners`
- Content Type: `Landing Page`
- Location: `United States`
- Language: `English`
**Output**: [Final Keyword Strategy ](./Final_Keyword_Strategy-AI_Automation.md)
---
The workflow provides a powerful automation for content marketers and SEO specialists to develop data-driven keyword strategies with minimal manual effort.
> Original Workflow: [AI-Powered SEO Keyword Research Automation - The vibe Marketer](https://templates.thevibemarketer.com/template/seo-keyword-research)
