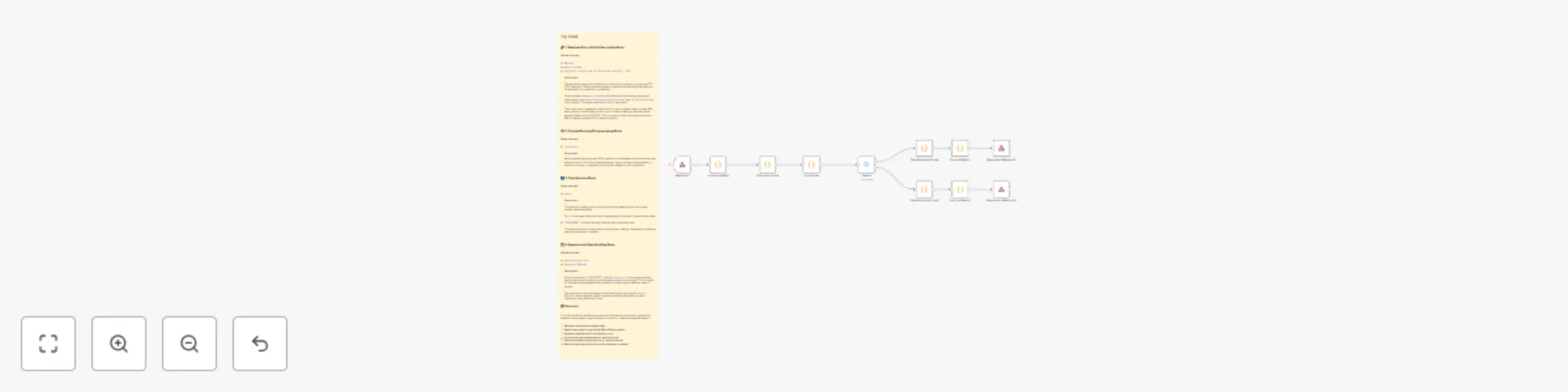

Create secure interactive applications with WhatsApp flows end-to-end encryption
# WhatsApp Flows Encrypted Data Exchange Workflow
## Summary
This workflow enables secure end-to-end encrypted data exchange with WhatsApp Flows for interactive applications inside Whatsapp. It implements the WhatsApp Business Encryption protocol using RSA for key exchange and AES-GCM for payload encryption, providing a secure channel for sensitive data transmission while interfacing with WhatsApp's Business API. This follows the official WhatsApp Business Encryption specifications to establish an encrypted GraphQL-powered data exchange channel between your business and the WhatsApp consumer client.
## How It Works
### Encryption Flow
1. **Webhook Reception**: Receives encrypted data from WhatsApp containing:
- `encrypted_flow_data`: The AES-encrypted payload
- `encrypted_aes_key`: The RSA-encrypted AES key
- `initial_vector`: Initialization vector for AES decryption
2. **Decryption Process**:
- The workflow decrypts the AES key using an RSA private key
- Then uses this AES key to decrypt the payload data
- The inverted IV is used for response encryption
3. **Data Processing**:
- The workflow parses the decrypted JSON data
- Routes requests based on the `screen` parameter.
4. **Response Generation**:
- Generates appropriate response data based on the request type
- Encrypts the response using the same AES key and inverted IV
- Returns the base64-encoded encrypted response
### Key Components
- **Webhook Endpoint**: Entry point for encrypted WhatsApp requests
- **Decryption Pipeline**: RSA and AES decryption components
- **Business Logic Router**: Screen-based routing for different functionality
- **Encryption Pipeline**: Secure response encryption
## How to Use
1. **Deploy the Workflow**:
- Import the workflow JSON into your n8n instance
2. **Set Up WhatsApp Integration**:
- Configure your WhatsApp Business API to send requests to your n8n webhook URL
- Ensure your WhatsApp integration is set up to encrypt data using the public key pair of the private key used in this workflow
3. **Test the Flow**:
- Send an encrypted test message from WhatsApp to verify connectivity
- Check if appointment data is being retrieved correctly
- Validate that seat selection is functioning as expected
4. **Production Use**:
- Monitor the workflow performance in production
- Set up error notification if needed
## Requirements
Authentication Keys
RSA Private Key: Required for decrypting the AES key (included in the workflow)
WhatsApp Business Public Key: Must be registered with the WhatsApp Business API
PostgreSQL Credentials: For accessing appointment data from the database
WhatsApp Business Encryption Setup
As specified in the WhatsApp Business Encryption documentation:
Generate a 2048-bit RSA Key Pair:
The private key remains with your business (used in this workflow)
The public key is shared with WhatsApp
Register the Public Key with WhatsApp:
Use the WhatsApp Cloud API to register your public key
Set up the public key using the /v17.0/{WhatsApp-Business-Account-ID}/whatsapp_business_encryption endpoint
Key Registration API Call:
POST /v17.0/{WhatsApp-Business-Account-ID}/whatsapp_business_encryption
{
"business_public_key": "YOUR_PUBLIC_KEY"
}
Verification:
Verify your public key is registered using a GET request to the same endpoint
Ensure the key status is "active"
